Deuterium Halogen UV Light Source TTL Signal Contorl
![](https://www.lucklaser.com/news/wp-content/uploads/2021/09/DH-mini-2in1-light-source-5-700x405.jpg)

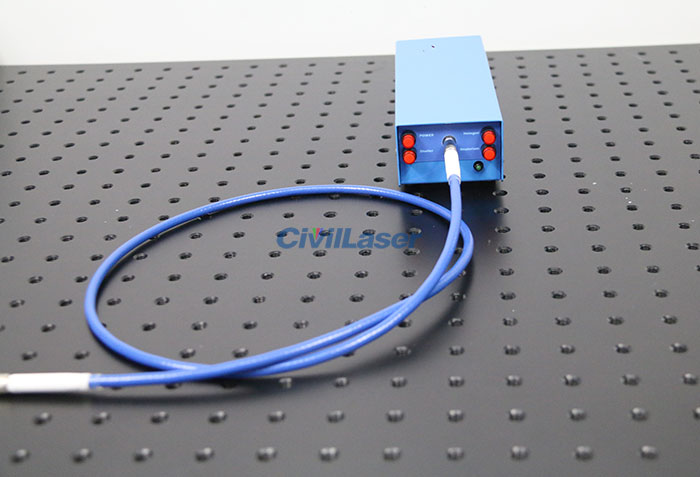

This is adeuterium lamp & halogen lamp 2IN1 source. The deuterium lamp and the tungsten lamp can be controlled separately. The 2IN1 light source has a pluggable fiber.The fiber is a 400μm anti-ultraviolet fiber. The following is a demonstration video of the operation of this light source. Let’s check it now.

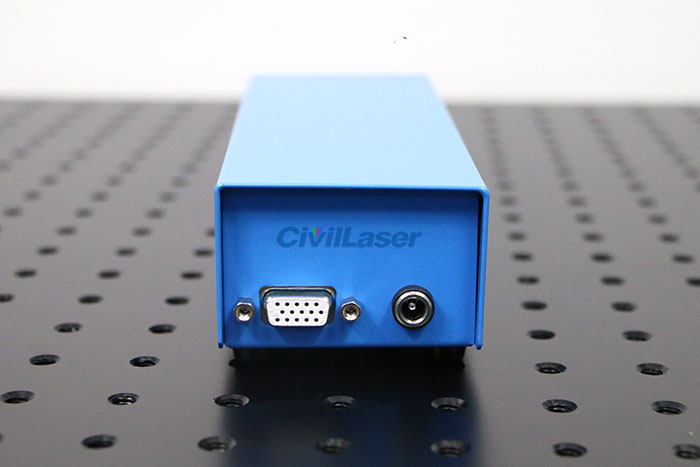

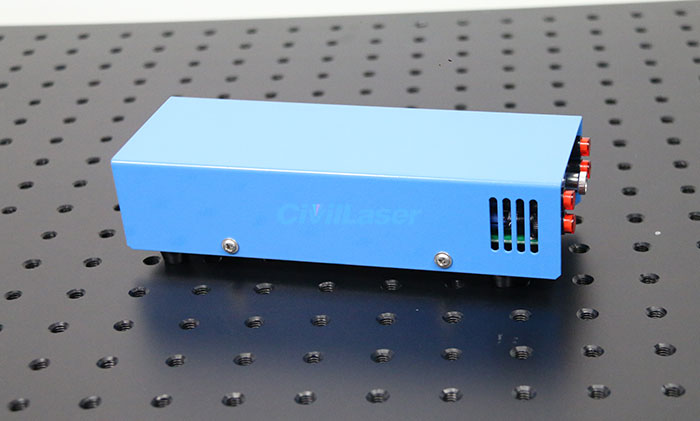

DH Mini is a compact UV visible light source designed for all types of handheld devices requiring low power consumption UV visible mobile spectrum analysis.

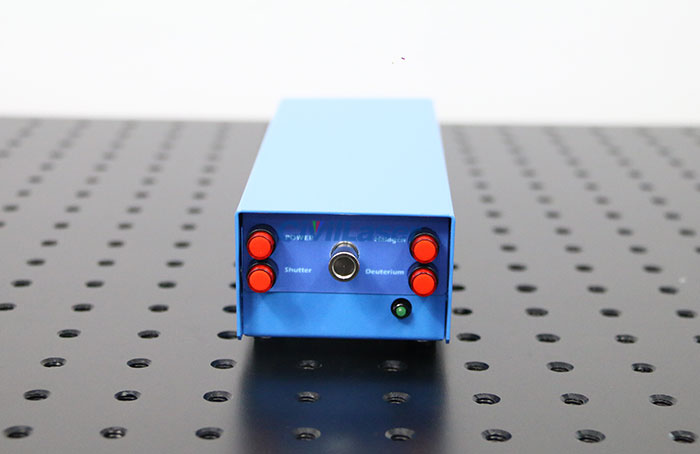

DH mini system is a complete UV-Vis-Nir light source, including deuterium lamp, 0.25W tungsten lamp, shutter, light path system and SMA905 interface. All the components are installed on a 12V DC / 600mA power supply. The deuterium lamp, tungsten lamp and shutter can be controlled independently by TTL signal.
