This laser adopts DFB type laser chip, and cooperates with high-power gain optical path module to realize polarization-maintaining fiber output of single-wavelength high-power laser. The professionally designed drive and temperature control circuit control ensures the safe and stable operation of the laser, and the spectrum and power remain stable for a long time. The modular package has a compact structure, which is convenient for user system integration and is more suitable for engineering applications.

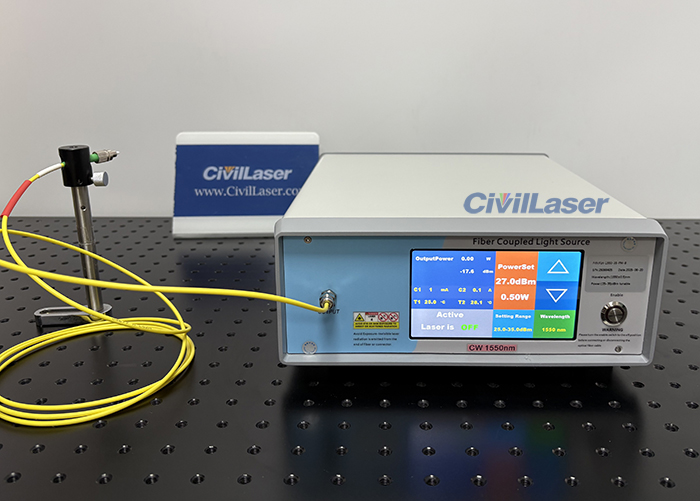

This one uses the latest touch screen technology. It is coupled to the polarization-maintaining fiber output. The output can be adjusted on the screen. Its setting range is 25dBm to 35dBm. It can also directly set the value you want.
Use the up and down arrow buttons on the screen to adjust the power directly. You can also click “PowerSet” and enter your desired power value. Click the unit field to switch between dBm and W.
1550nm is infrared laser, which is invisible to the naked eye. We need to observe the light spot on the infrared detection card.

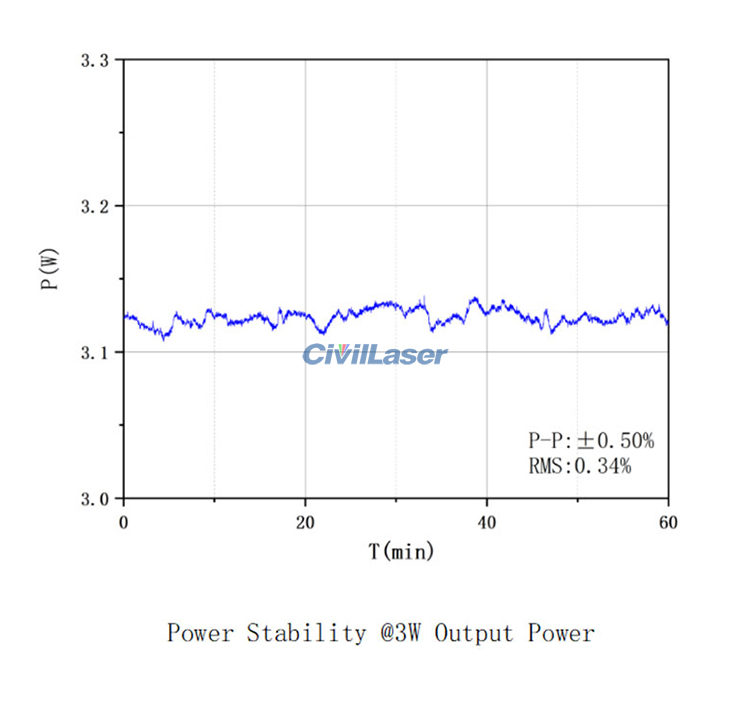

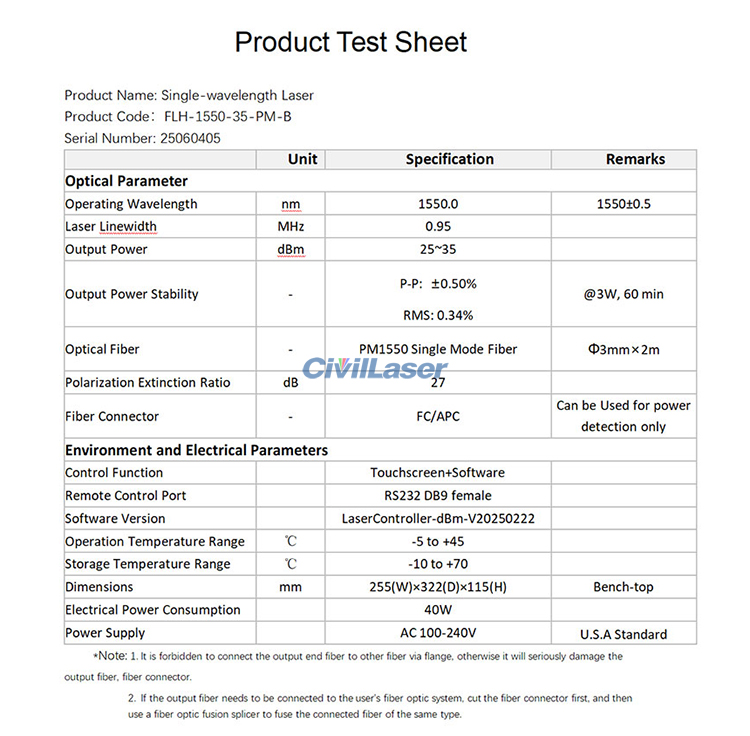

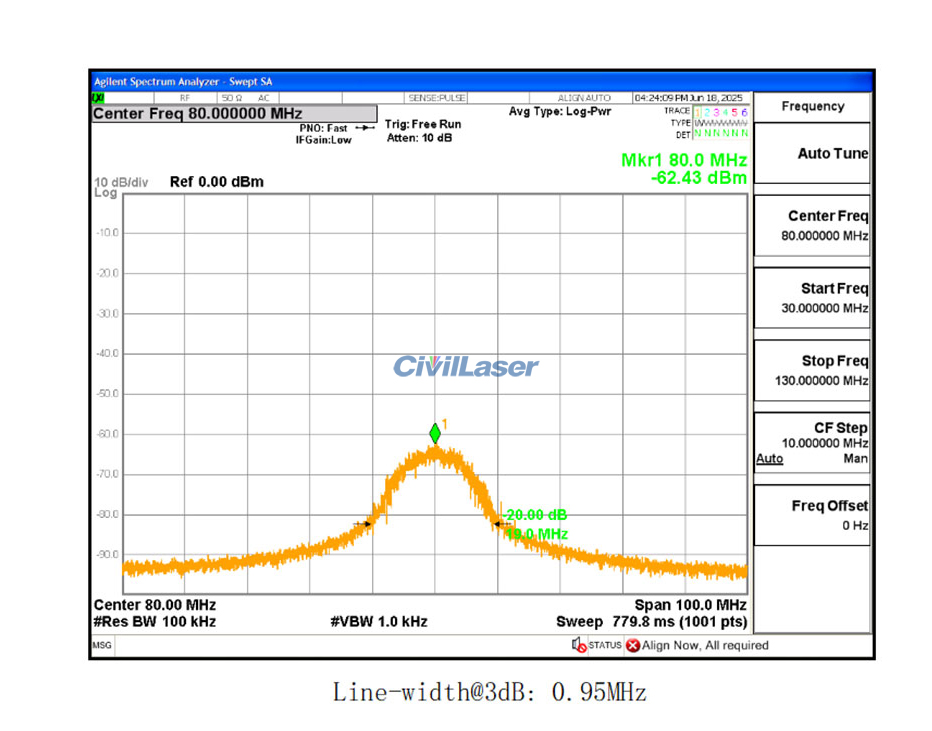

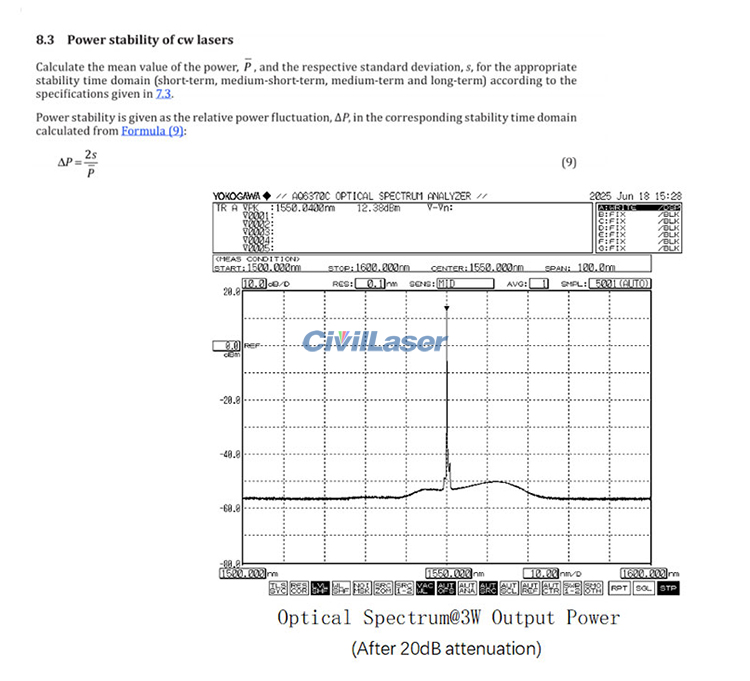

The test data report of this 1550nm fiber laser.
