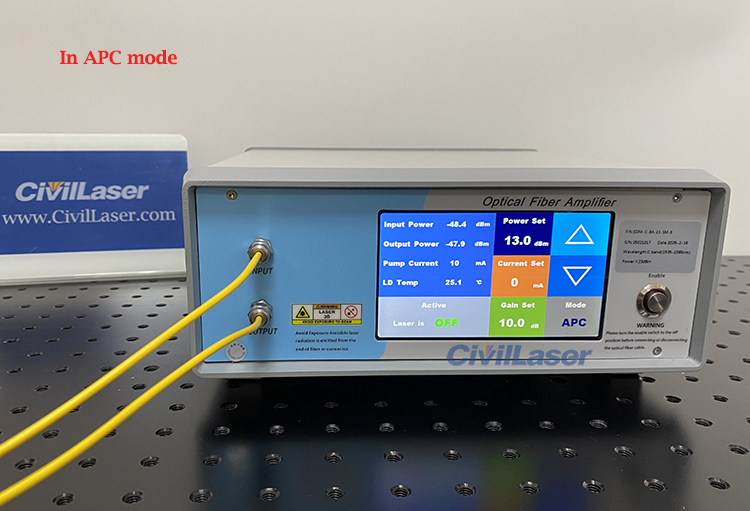

Today we will be discussing a new type of desktop C-band 23dBm erbium-doped fiber amplifier. This product uses an LCD touchscreen for control and display of operating parameters. We can set the operating mode and adjust parameters on the screen. Click the Mode area to select the operating mode. In APC mode, we can adjust the power using the up and down arrows on the right. Alternatively, click the ‘PowerSet’ area and enter the desired power value on the pop-up keyboard. In ACC and AGC mode, we set the current and gain factor in the same way. In AGC mode, set the desired gain factor from 0 to 25dB. We can also directly input the desired value to set it. Let’s check it now.
The upper left corner of the screen is the status display area, showing the current real-time input power, output power, pump laser current, and pump laser temperature (LD Temp); the other areas are for control and parameter input.
EDFA-C-BA-23-SM-B is a high-performance benchtop C-band erbium doped fiber amplifier designed for optical communication testing, laboratory research and long-haul transmission systems. It delivers stable output power, high gain and low noise figure in a compact benchtop structure, ensuring excellent reliability and ease of operation. Ideal for telecom R&D, fiber sensing, optical signal amplification and precision measurement applications.

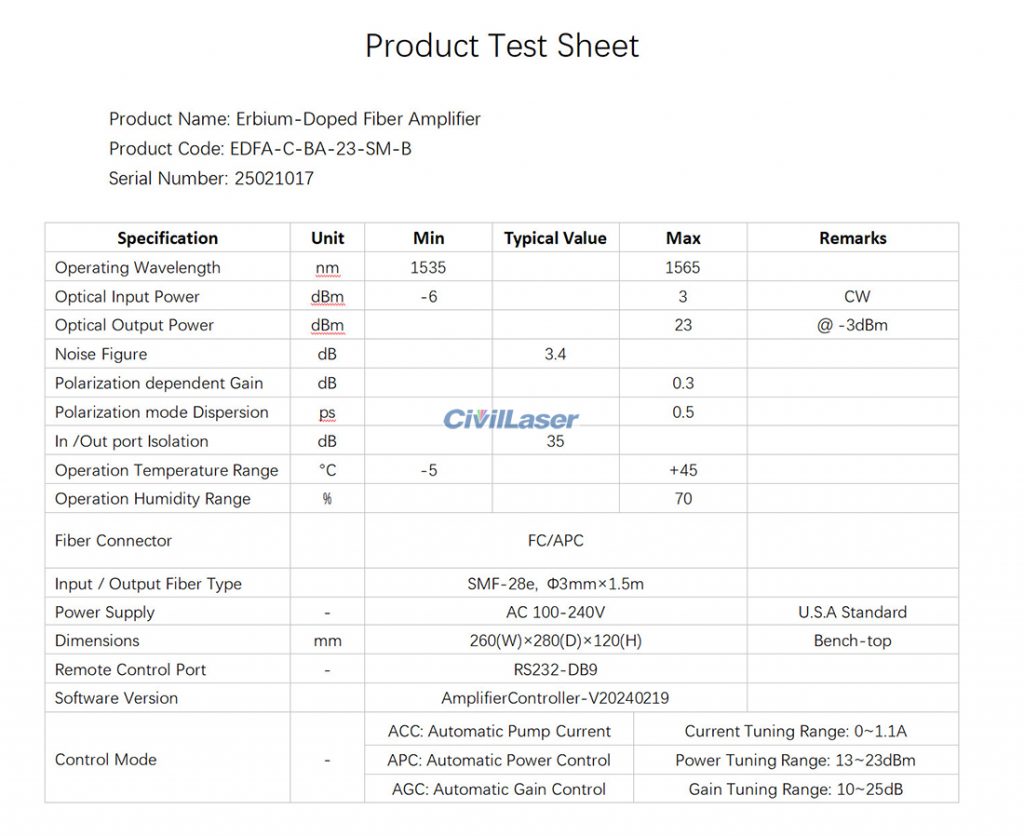

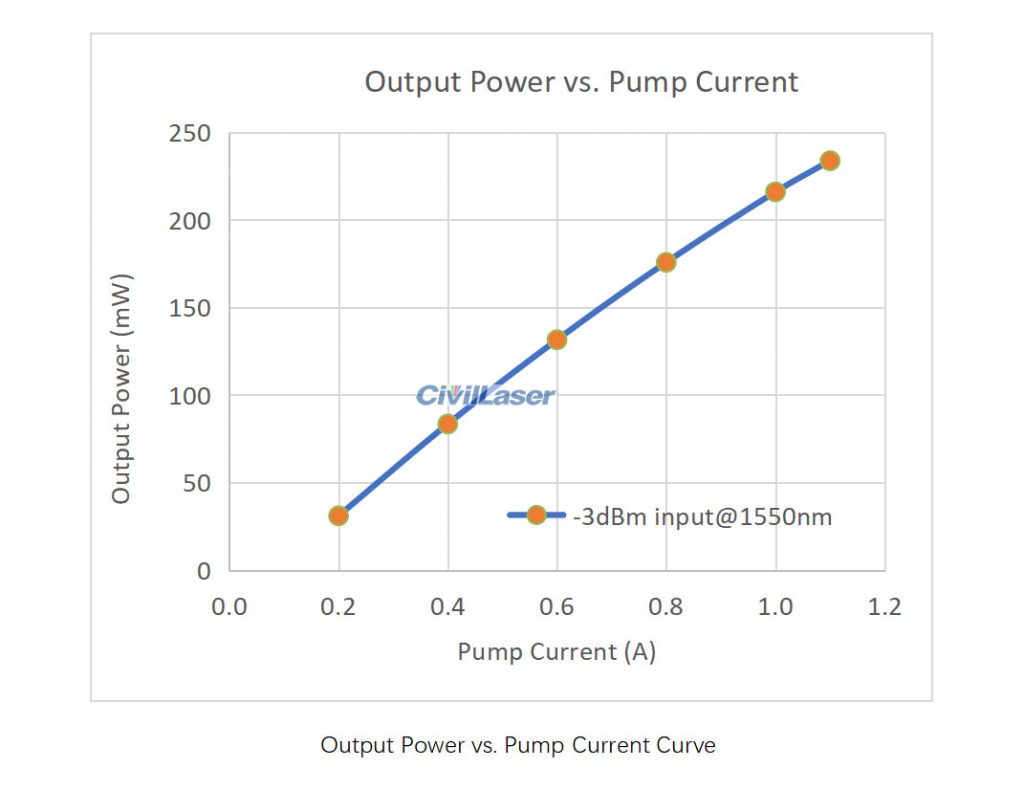

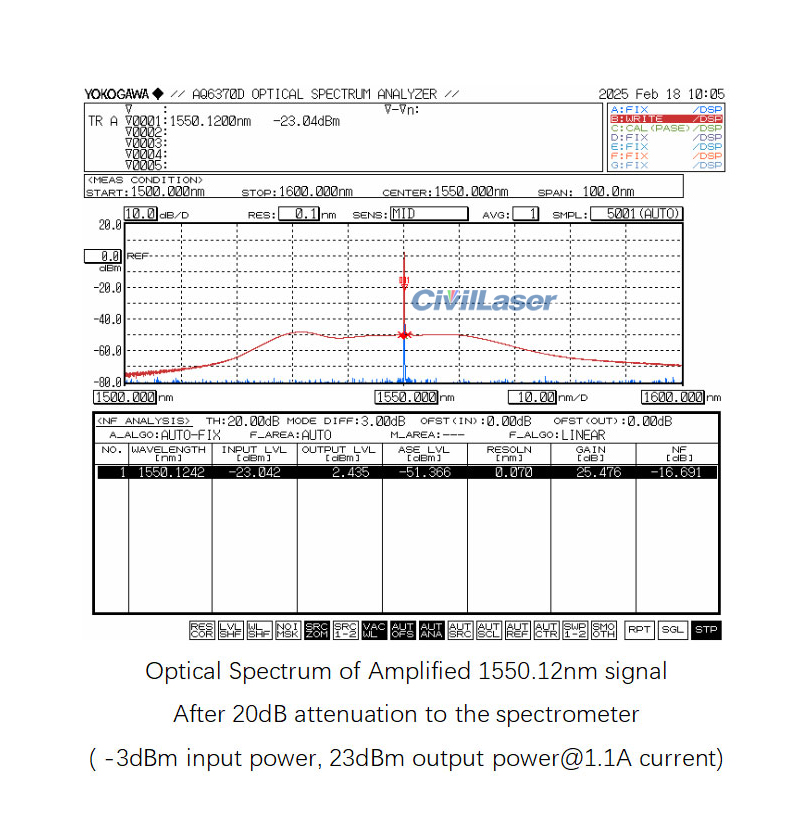

The test report of this C-band 23dBm fiber amplifier.
We support OEM / ODM service, customizable parameters and compact benchtop design for easy operation. As a professional manufacturer, we provide stable quality, competitive price and global after-sales support for European and American markets.
