1550nm SLD Broadband Light Source SM Fiber Output

SLD broadband light source adopts super radiant semiconductor diode light-emitting chip, which outputs broadband spectrum with low coherence degree and high output optical power spectral density. The operating wavelength can be selected from O, S, C, L and other bands, suitable for optical OCT, optical fiber sensing applications.

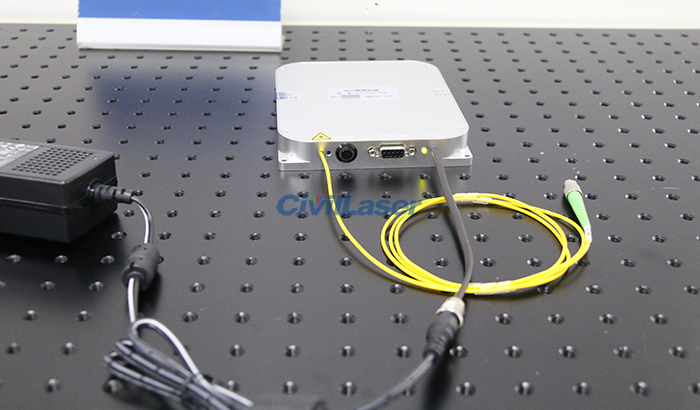

This is a 1550nm 10mW SLD light source of module type. It is equipped with a single mode fiber. It can be customized power adjustable version. When the power adjustment is selected, the power adjustment is controlled through the RS232 serial communication. The standard version is a fixed power mode, the light source is controlled by the button. We tested it with an infrared photosensitive film, and we could see a light spot.

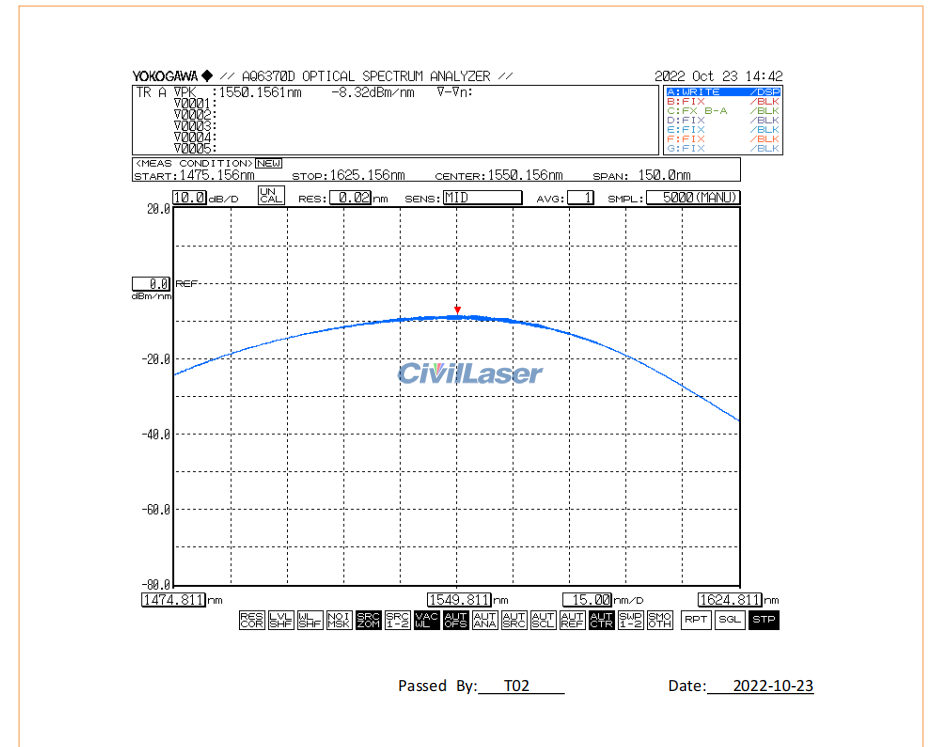

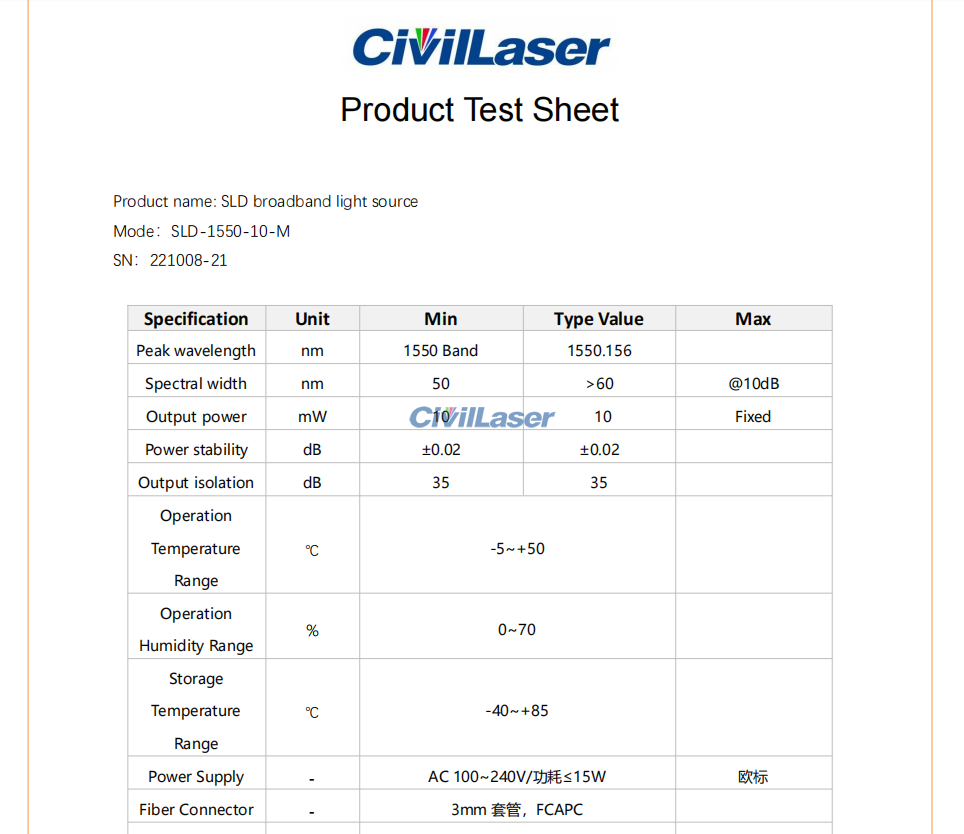

The test data report and spectrum of 1550nm light source.
