520nm Fiber Laser Source Benchtop Green Laser Spot

This laser adopts semiconductor laser chip, and the professionally designed drive and temperature control circuit temperature control ensures the safe operation of the laser, stable output power and spectrum, and excellent spot quality (TEM00 mode).

The one in the video is 520nm 20mW single-mode fiber coupled laser source. The default fiber interface is FC/APC, and PM fiber output can also be customized. It supports button control and software control of laser. The working voltage is AC 100~240V wide range voltage. The laser output power is adjustable, the adjustment accuracy is 1mW, and the adjustment range is 10~100%.

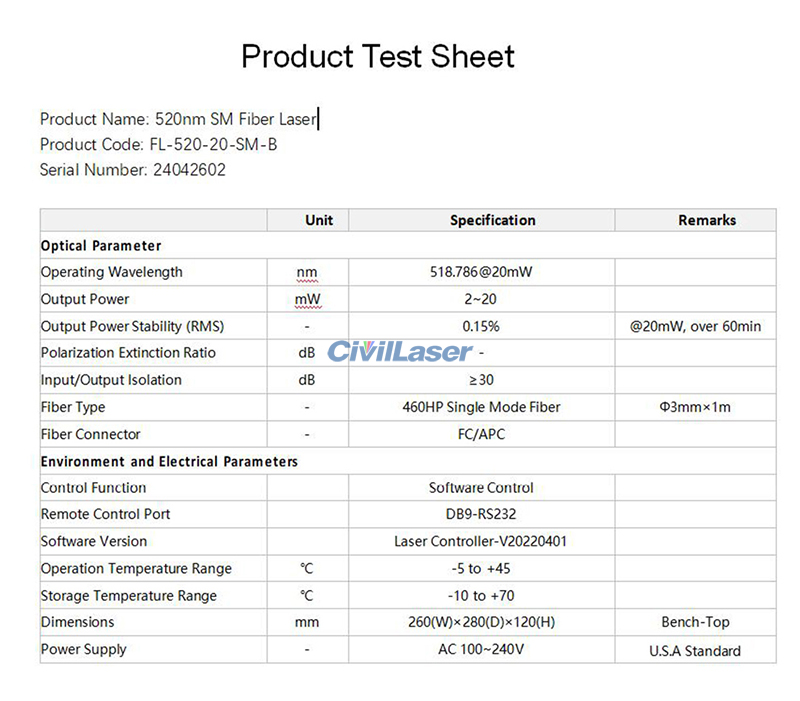

The test data of this laser.

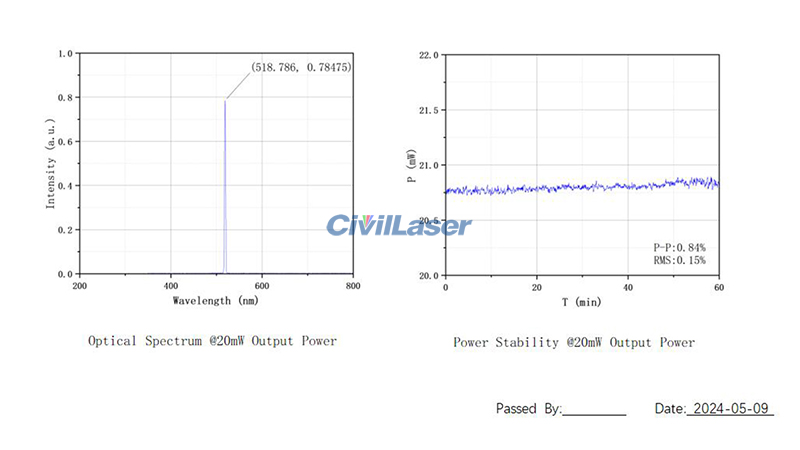

The spectrum chart and power stability test chart of 520nm laser.
