37dBm 5W SM YDFA VS. 40dBm 10W PM YDFA
Ytterbium-doped fiber amplifier (YDFA) generates gain by pumping ytterbium-doped fiber with semiconductor laser, which is used to amplify laser signals in the 1030~1100nm band, Hi1060 single-mode fiber output, the output power is continuously adjustable, with high gain and low The advantage of noise. The desktop YDFA is convenient for experimental operation, and the user can adjust the pump current and output power through the buttons on the front panel. A more compact modular YDFA is also available, which is convenient for users’ system integration. Both desktop YDFA and modular YDFA can support PC software control and serial port command control.

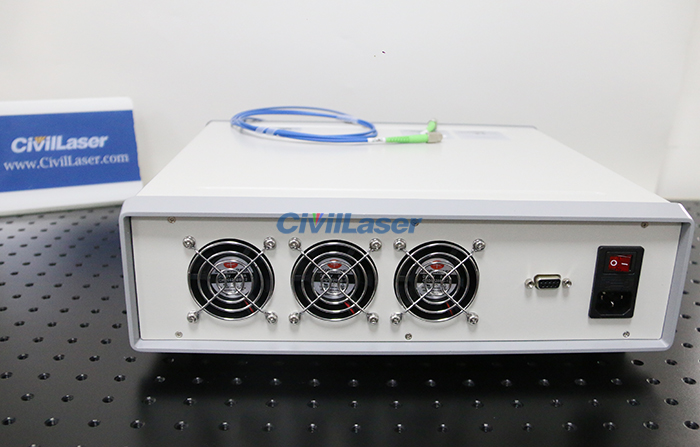

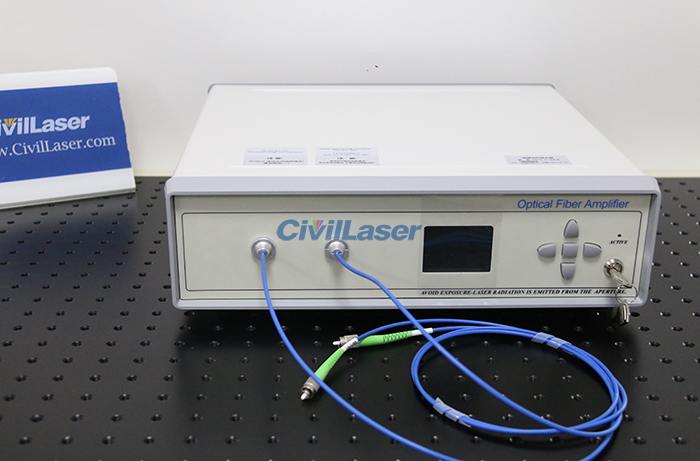

It’s a high power Ytterbium-doped optical amplifier, its output power is 37dBm. And high power YDFA built-in 3 cooling fans. The software control function can be customized, and the default is button control. The current working mode, current and output power are displayed on the front display.

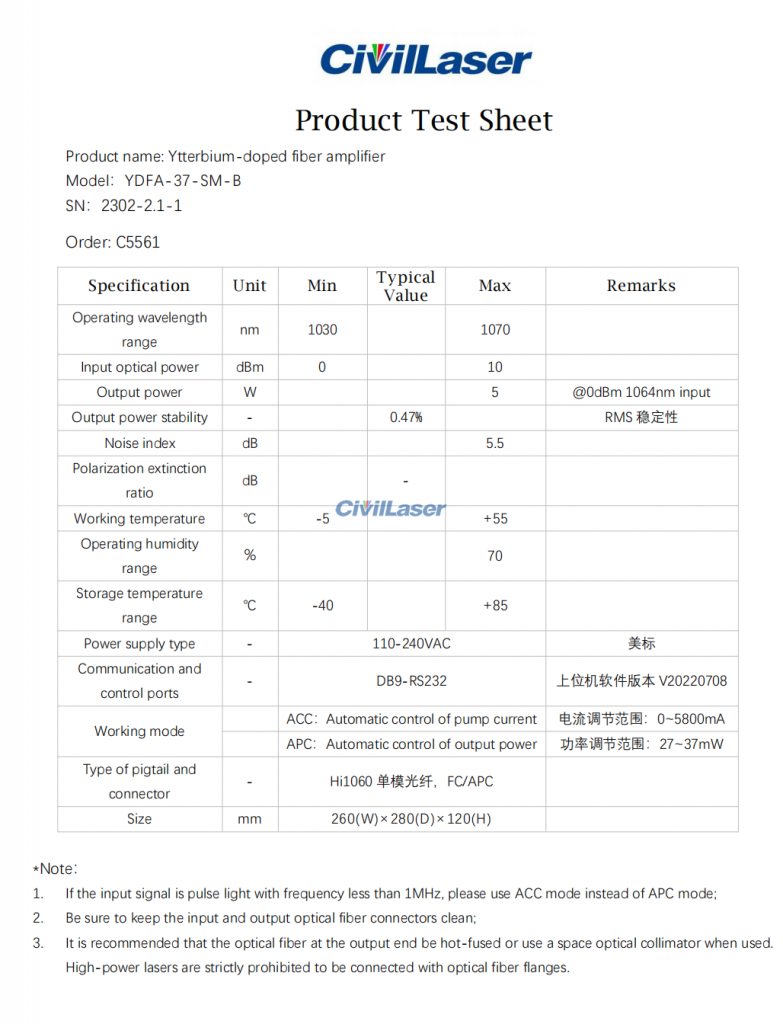

The test report of YDFA-37-SM.
Civil Laser’s 10W high power YDFA include a ‘Monitor’ fiber. The software control function can be customized, and the default is button control. The working current or output power can be adjusted by the button.

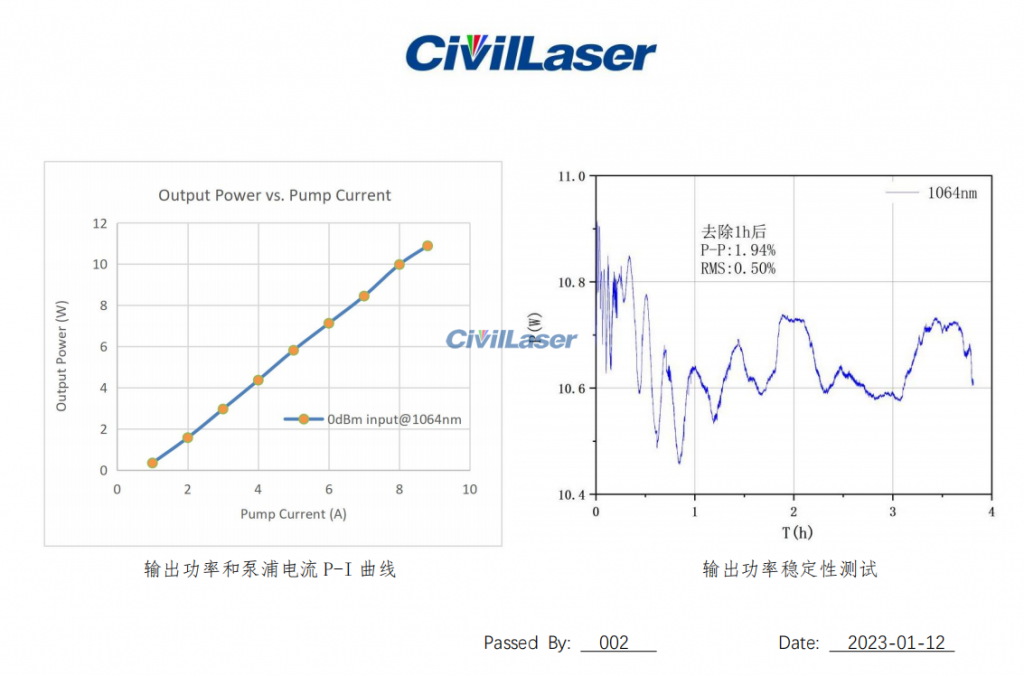

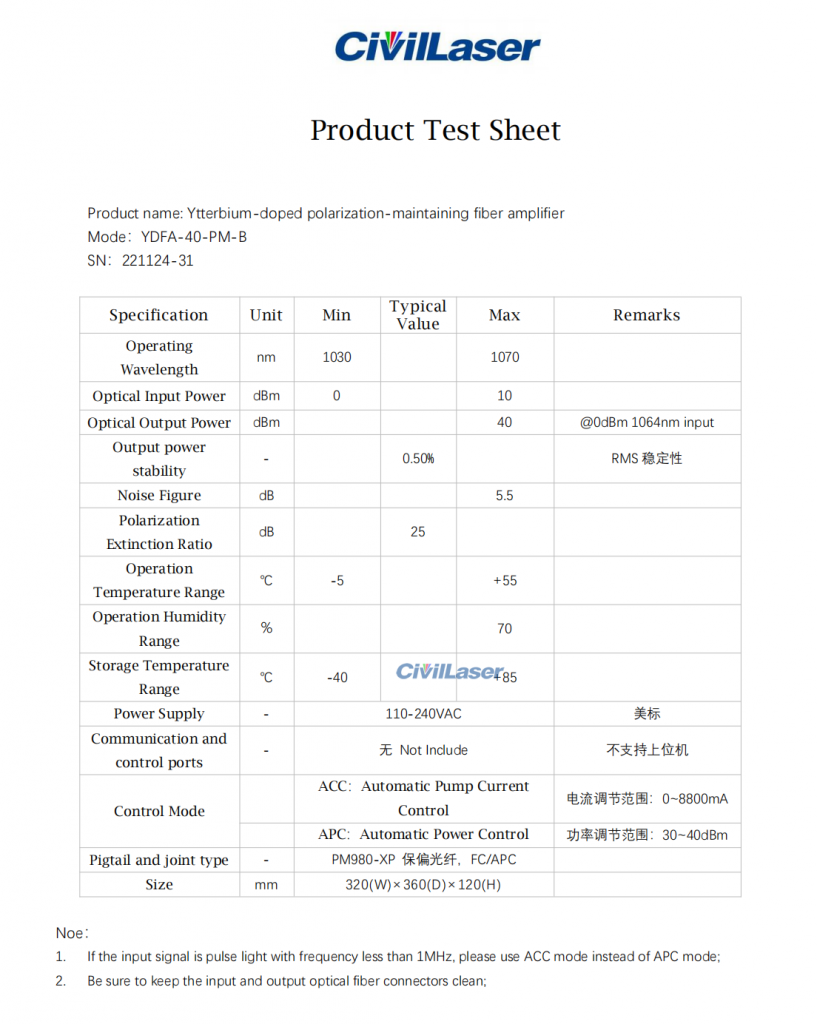

The test report of YDFA-40-PM.

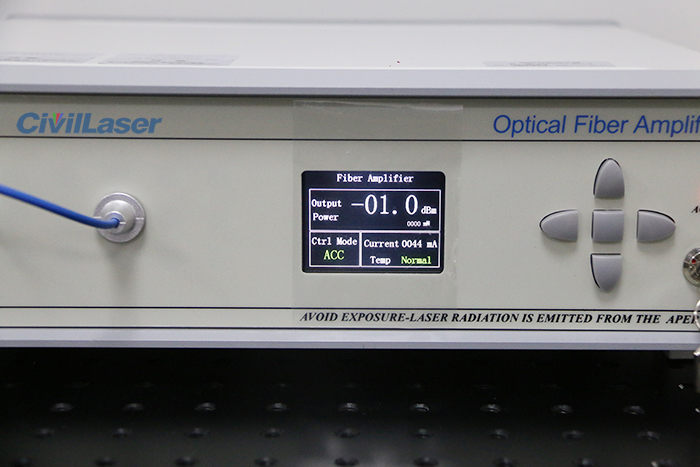

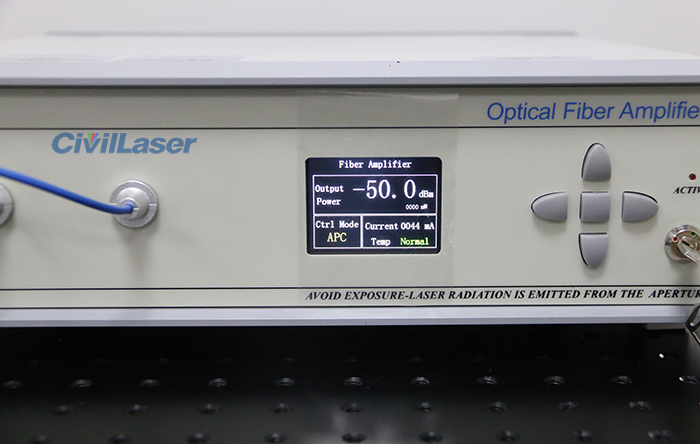

CivilLaser’s YDFA supports both APC and ACC working modes, and both modes can be switched. In APC mode, the output power can be adjusted. In ACC mode, the working current can be adjusted.
